core cycle time: 8 seconds
Substrate size: 620 mm (X) x 508.5 mm (Y)
System alignment capability: > 2.0 Cmk @ ± 25 μm
Substrate thickness: 0.2 mm to 6 mm

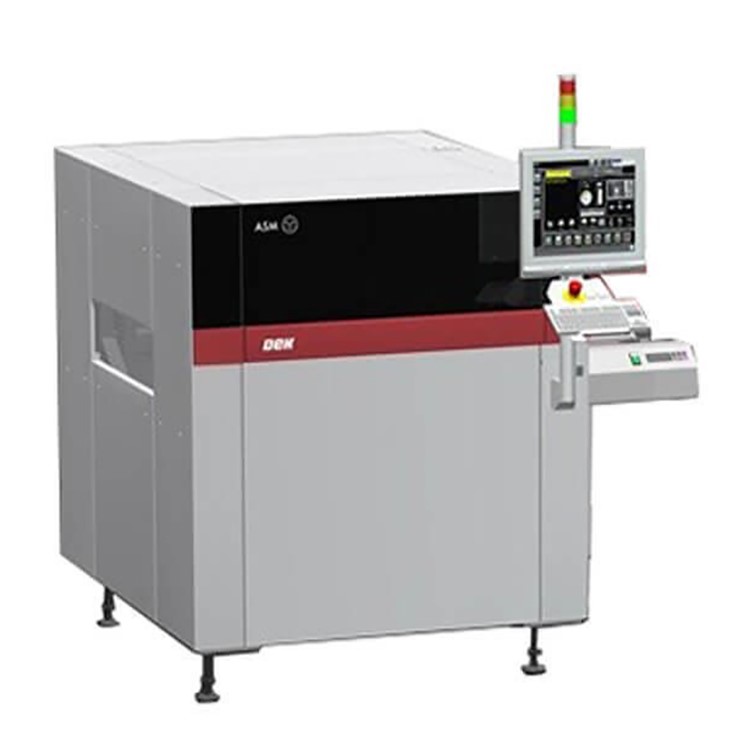

DEK Stencil Printer E Seriels
Quality
DEK’s experienced printing specialists have developed an innovative platform for E by DEK with high-quality components, sophisticated construction, and modular design that guarantees a stable and reliable printing process even for the latest fine-pitch applications.
Performance
The E by DEK delivers E-Performance with:
8 seconds core cycle time
Fast setup changeovers
High repeatability
Model | |
Alignment | > 2.0 Cmk @ ± 12.5 μm (± 6 sigma) |
System alignment capability | > 2.0 Cmk @ ± 25 μm (± 6 sigma) |
Optimum core cycle time | 8 seconds |
Substrate size | 50 mm (X) x 40.5 mm (Y) to 620 mm (X) x 508.5 mm (Y) |
Operating System | Windows 7 Embedded |
Squeegee pressure mechanism | Software-controlled, motorized with closed loop feedback |
Stencil positioning | Semi-auto stencil load with drip tray |
Understencil cleaning | Interchangeable understencil cleaner (IUSC), fully programmable with wet/dry/vacuum wipe |
Adjustable-width stencil mount (AWSM) | Frame variants - fully adjustable to accommodate frame sizes in the range of 381 mm to 736 mm |
Substrate thickness | 0.2 mm to 6 mm |
Substrate weight (maximum) | 6 kg |
Substrate warpage | Up to 7 mm including substrate thickness |
Substrate fixture | Over the top clamp Edge clamp Foil-less clamp Vacuum |
Temperature & humidity sensorPanasonic SPG Stencil printer, Panasonic SPV Stencil printer | Monitoring of the process environment |
