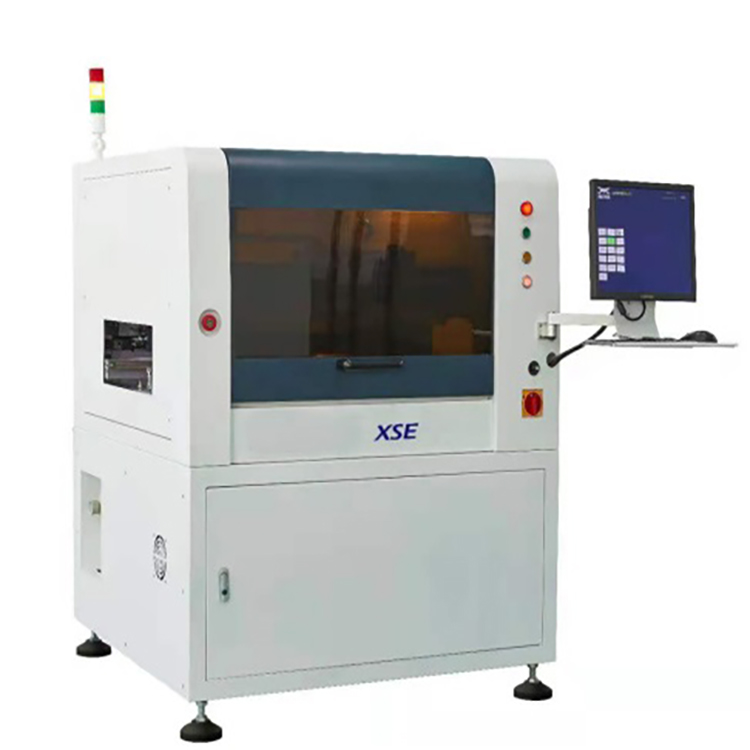

SMT Full Automatic Solder Paste Printer for PCB printing XSE

It adopts windows xp operation interface and has good man machine dialogue function. The program file has teaching and navigation functions, and the operation interface has: operation log/fault record/fault self-diagnosis/light alarm function, simple operation.

EMAIL

SMT Full Automatic Solder Paste Printer for PCB printing XSE



Type

Item

Parameter

Operation interface

operating system

Windows XP Operation interface

Signal link

SMEMA signal connection

visual system

visual parameters

Upper and lower dual-view high-performance CCD and image processing system.

Printing accuracy

Repeat printing accuracy

±0.01

Printing accuracy

±0.025

Cycle time

printing cycle

<8sOne piece does not include print cleaning time

PCB parameter

Steel mesh size

370*370-737*737mm

Screen frame fixed

Cylinder

PCB size

Minimum 50*50, Maximum 400*340mm

PCB thickness

0.4-6mm

PCB weight

3kg

Support method

Magnetic ejector pin, magnetic ejector pin, manual crimping

delivery system

One-stage conveyor system。

Transmission direction

Left-right, right-left, left-left, right-right, (software control)

UVW platform adjustment range

Not lower than X: ±3mm, Y±7mm.e; ±2 degrees

Platform/Transport Parameters

PCB Transmission height

900±40mm

Platform adjustment angle

Z:±2 degree

Scraper speed

Printing parameters

Squeegee pressure

0.5-10kg

demoulding speed

0-20mm/s adjustable

scraper angle

Standard 60 degrees

Wipe the net way

Free combination of dry/wet modes

Whole system

software

Free lifetime maintenance and free lifetime upgrades

Gas source

4-6kgf/cm2

main power supply

AC:220±10%,50/60HZ 1Φ 1.5KW

physical dimension

1120*1320*1510
