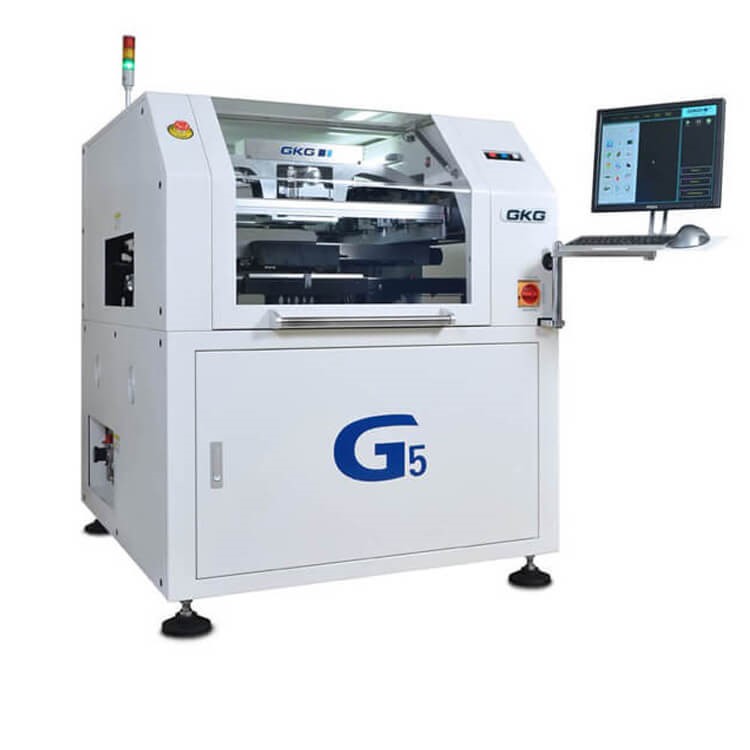

GKG G5 Fully Automatic SMT Stencil Printer machine

Cycle Time <8s
PCB size:400mm x 340mm
size: 1140x1364x1404mm
Weight:1000Kg
Product description: GKG G5 Fully Automatic SMT Stencil Printer, Cycle Time <8s, PCB size:400mm x 340mm, size: 1140x1364x1404mm, Weight:1000Kg

EMAIL

GKG G5 Fully Automatic SMT Stencil Printer machine



G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of thetransmission system, suspension adaptive scraper.
Specification :
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~400mm x 340mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item

Parameter

Repeat Position Accuracy

±0.01mm(Test data and method are available)

Printing Accuracy

±0.025mm(Test data and method are available)

Printing Speed / Cycle Time

<8s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min-Max

737x737mm

Screen Stencil Size/Thickness

20mm ~ 40mm

PCB Size/Min-Max/Thickness5

0X50mm-400x340mm/0.4~6mm

PCB Warpage Ratio

1%Based on diagonal length

Bottom of Board Size

15mmStandard configuration, 25mm

Edge of Board Size

3mm

Conveyor Height

900±40mm

Conveyor Direction

Left-Right; Right-Left; Left-Left; Right-Right

Conveyor Speed

100-1500mm/sec Programmable control

Board Positioning

Support System

Magnetic pin/Side support block/Flexible automatic pinoptional

Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting

Print head

Two indepandent Motorised printheads

Squeegee Speed

6~300mm/sec

Squeegee Pressure

0-10kg software controlclosed-loop pressure feedback, pressure value visible

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.

Steel Mesh Separation Speed

0.1~20mm/sec Programmable Control

Cleaning Method

Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods

Table Adjustment Range

X:±3mm; Y:±7mm θ:±2°

Type of Fiducial Point

Standard geometry shape of fiducial point, bonding pad / Stencil hole

Camera System

Single digital camera for upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1Φ 1.5KW

Machine Dimensions/Weight

Depends on exactly model

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%
