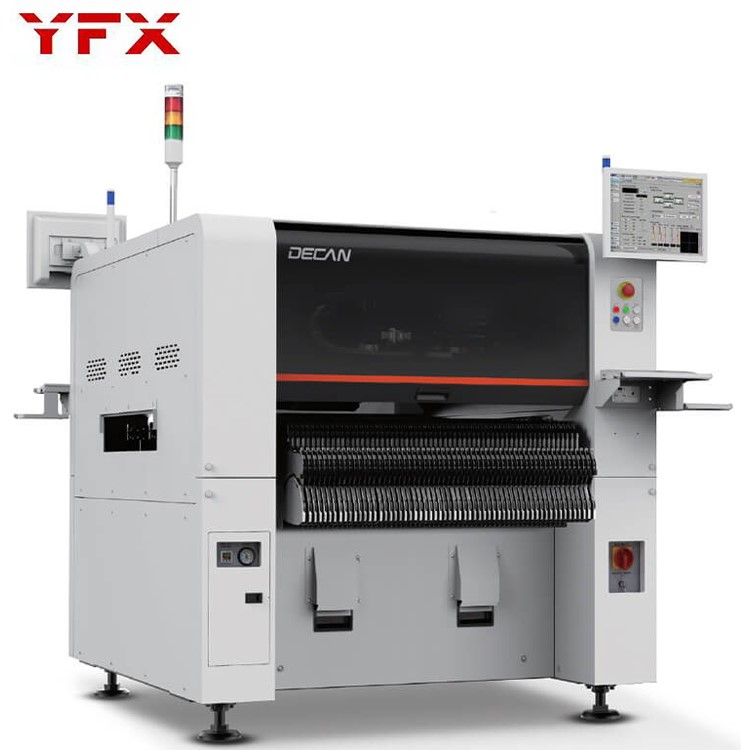

Hanwha DECAN L2 Pick and Place Machine

High Speed:92,000 CPH(HS10 head)
PCB Size : L510xW460mm
Feeder position:120ea
Weight: 1,800kg
Product description: Hanwha DECAN L2 Pick and Place Machine, High Speed:56,000, PCB Size : L510xW460mm, Feeder position:120ea, component range:0402 ~ 21mm, H12mm, Weight: 1,800kg

EMAIL

Hanwha DECAN L2 Pick and Place Machine



Hanwha Pick and place machine DECAN L2, Samsung Pick and place machine DECAN L2, Hanwha chip mounter DECAN L2, Hanwha chip mounter DECAN L2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components;

High Performance
-2 Gantry, Flying VisionHead
-56,000 CPH (Optimum, FS06 Head)
High Reliability
-Suitable for Linear Motor, high precision and low noise
-Accuracy ± 40um @ Cpk≥1.0 (0402)
Flexible Production
-Modular Conveyor System
 6Spindle, 6 Flying Vision (FOV 24mm) Head
-Batch recognition with 6 cameras while picking up 6 components
-Processable components: 0402 ~ 21mm, H12mm
 Low-noise, low-vibration high-speed placement with Linearmotor
-Suitable for Y-axis Linear Motor and realizes high noise reduction and vibration with high acceleration and deceleration using Twin servo Control
 LEDLens protrusion recognition function (patent pending)
-Recognition of protrusions to distinguish LED lens types
-Added protrusions to distinguish lenses with similar shape but different thickness, which can recognize Lens (15 °, 30 °)
 Identify the LED lighting source as the center and mount Lens
-Supports the function of recognizing the LED lighting source as the center and mounting Lens, which enhances the component processing ability
-Can handle PCB L1,200xW460mm

▶ Speed : 56,000 CPH (Optimum)
▶ Structure : 2 Gantry x 6 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm, L75 (H25mm)
▶ PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution
▶ High Speed Placement

▶Dimension(mm):1,430(L) x 1,740(D) x 1,485(H)

 Weight: 1,800kg

Model

Decan S2

Decan F2

Decan L2

Spindles

2 gantry*10 spidles/head

2 gantry*10 spidles/head

2 gantry*6 spidles/head

Placement Speed

92000 cph (optimum)

80000cph  (optimum)

56000 cph(flying vision, optimum)

-0.14 seconds/component (flying vision, SOIC 0.5P)

-0.55 seconds/component (Upward vision, SOIC 0.5P)

Vision

Flying vision

Flying vision

Stage vision(option)

Placement accuracy

±28μm Cpk≥1.0(03015 chip)

±25μm CPK≥1.0(IC)

±40μm Cpk≥1.0(0402(01005 inch) chip)

±30μm CPK≥1.0(IC,stage vision)

Component range

03015-12mm(H10mm)

0402(01005)-16mm(H10mm)

Max. 42mm( H15mm)(option)

0402(01005)-21mm(H12mm)

Max. 55mm( H25mm)(option)

PCB size

50*40-510*460mm(standard)

-740*460mm(option)

Max.-1200*460mm(option)

Conveyor configurations

Standard: 1-2-1

Option: 1-2-2/2-2-2/2-2-1/1-1-1

Factory Option: single conveyor (Jadec Tray 2ea)

Feeder capacity

120ea(8mm)

Power

Voltage: 3 phase AC200/208/220/240/380/415 V ±10%

Air consumption

50Nl/min

Weight

About 1800kg

External dimension

1430*1740*1485mm(L*D*H)
