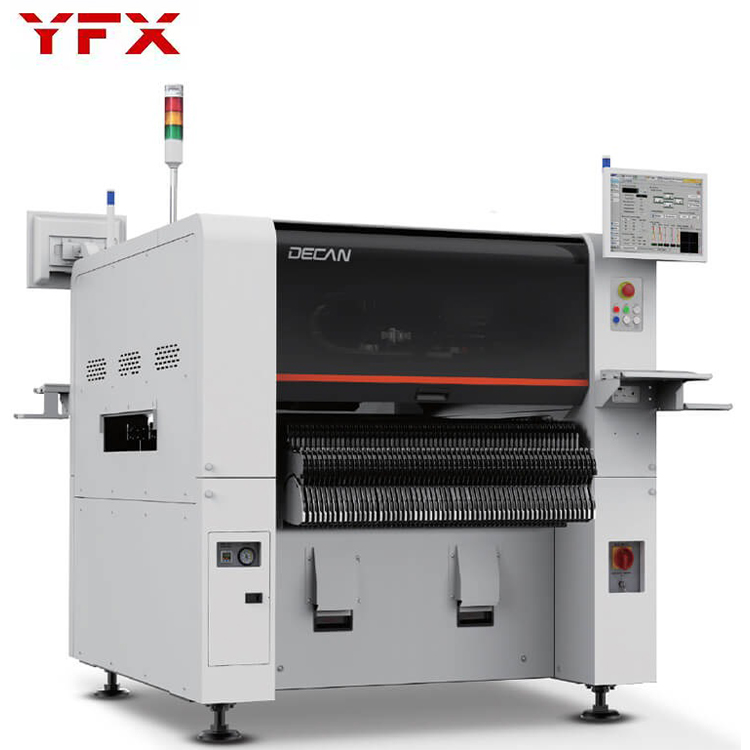

Hanwha DECAN F2 Pick and Place Machine

High Speed:120,000 CPH
Ultra Slim Design with a Total Length of 1.25m
Applies High Rotary Modular Head
Side-view Vision System
Product description: Hanwha DECAN F2 Pick and Place Machine High Speed SMT Modular Chip Mounter,High Speed:120,000 CPH,Side-view Vision System,Ultra Slim Design with a Total Length of 1.25m

Hanwha DECAN F2 Pick and Place Machine

The Hanwha DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class.

Best in class productivity

The Hanwha DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class. The modular conveyor allows Optimal PCB flow and it is possible to convert to large board handling in the customer facility. Stage vision and tray feeder options increase its flexibility.

Responding to changes in your products

Conveniently modified on site to be capable of handling large-size PCBs; an industry first. Customer costs are minimized, and products can be changed without additional investments in new equipment.

Improved versatility

High-speed and high-precision production from microchips to odd-shaped components in the same platform

Maximized production efficiency

Part mounting and PCB transportation path are optimized with flying vision and modular conveyor sections.

Optimizing PCB transportation paths for productivity improvement

Modular Conveyors

An optimal conveyor model configuration is possible according to production line composition (shuttle ? dual) applied with a modular conveyor that is replaceable on site.
PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed.Twin Servo Control
Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head
Minimized head movement path through recognizing parts during transportation following parts installation
10-spindle head with individually operating Z axes

High Reliability

Placement Accuracy: ±40um (0402mm 01005inch)

Applied with a high-precision linear scale and rigid mechanism
Provides precision calibration algorithms and diverse automatic calibration functions

Easy Operation

Strengthened equipment software operation convenience

Convenient production and editing of work programs with built-in equipment optimization software
Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

Calibration and maintenance-free electric feeder
Improved work convenience with a single reel bank mounted feeder
Improved productivity through the provision of automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

Automatic loading and splicing capabilities implemented as an industry first - Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
Zero consumables costs for parts connection attained

Model	Decan S2	Decan F2	Decan L2
Spindles	2 gantry*10 spidles/head	2 gantry*10 spidles/head	2 gantry*6 spidles/head
Placement Speed	92000 cph (optimum)	80000cph (optimum)	56000 cph(flying vision, optimum) -0.14 seconds/component (flying vision, SOIC 0.5P) -0.55 seconds/component (Upward vision, SOIC 0.5P)
Vision	Flying vision	Flying vision Stage vision(option)
Placement accuracy	±28μm Cpk≥1.0(03015 chip) ±25μm CPK≥1.0(IC)	±40μm Cpk≥1.0(0402(01005 inch) chip) ±30μm CPK≥1.0(IC,stage vision)
Component range	03015-12mm(H10mm)	0402(01005)-16mm(H10mm) Max. 42mm( H15mm)(option)	0402(01005)-21mm(H12mm) Max. 55mm( H25mm)(option)
PCB size	5040-510460mm(standard) -740460mm(option) Max.-1200460mm(option)
Conveyor configurations	Standard: 1-2-1 Option: 1-2-2/2-2-2/2-2-1/1-1-1 Factory Option: single conveyor (Jadec Tray 2ea)
Feeder capacity	120ea(8mm)
Power	Voltage: 3 phase AC200/208/220/240/380/415 V ±10%
Air consumption	50Nl/min
Weight	About 1800kg
External dimension	143017401485mm(LDH)
