High Speed:92,000 CPH(HS10 head)
PCB Size : L510xW460mm
Feeder position:120ea
Weight: 1,800kg
Product description: Samsung Hanwha DECAN S2 Pick and Place Machine, High Speed:92,000 CPH(HS10 head), PCB Size : L510xW460mm, Feeder position:120ea, Weight: 1,800kg

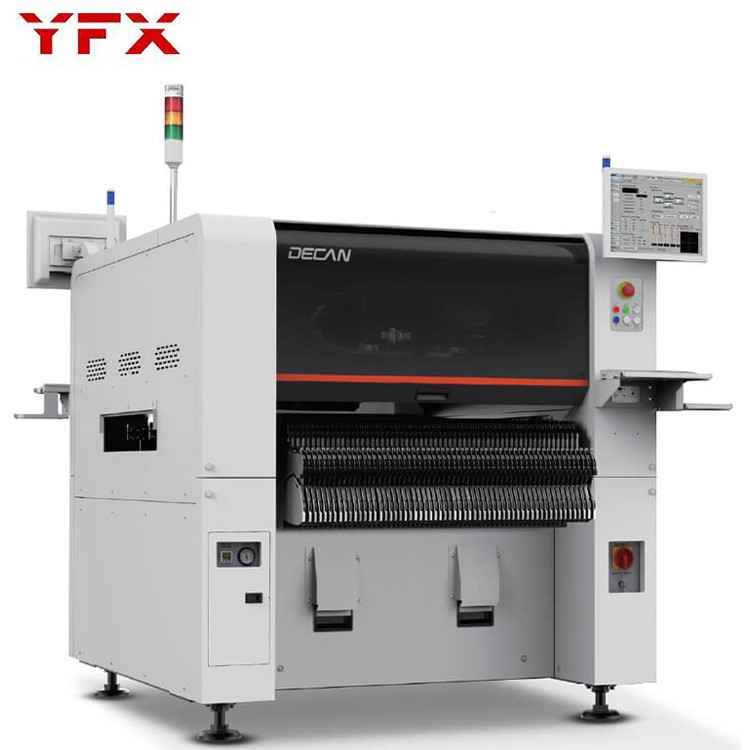

Hanwha DECAN S2 Pick and Place Machine
Hanwha Pick and place machine DECAN S2, Samsung Pick and place machine DECAN S2, Hanwha chip mounter DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components; The DECAN S2 high-speed chip placement machine is equipped with 10 shafts per head and is suitable for dual cantilever, magnetically levitated high-performance placement machines, which can achieve the highest speed in the world's same-class products. 92,000CPH. Welcome to "Hanwha decan s2, original Samsung high speed placement machine, Hanwha magnetic suspension pick and place machine"
Hanwha DECAN S2 Pick and Place Machine
Advanced Chip shooter
1 Speed : 92,000 CPH (Optimum)
2 Structure : 2 Gantry x 10 Spindles/Head
3 Accuracy : ±28μm Cpk≥1.0 (03015 Chip)
±25μm Cpk≥1.0 (IC)
4 Parts Size : 03015~□55mm (H15mm)
5 PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
6 Wide Part Handling Capability
7 Various PCB Transfer Systems
8 Verified Production History Management Solution
9 High Speed Placement
Model | Decan S2 | Decan F2 | Decan L2 |
Spindles | 2 gantry*10 spidles/head | 2 gantry*10 spidles/head | 2 gantry*6 spidles/head |
Placement Speed | 92000 cph (optimum) | 80000cph (optimum) | 56000 cph(flying vision, optimum) -0.14 seconds/component (flying vision, SOIC 0.5P) -0.55 seconds/component (Upward vision, SOIC 0.5P) |
Vision | Flying vision | Flying vision Stage vision(option) | |
Placement accuracy | ±28μm Cpk≥1.0(03015 chip) ±25μm CPK≥1.0(IC) | ±40μm Cpk≥1.0(0402(01005 inch) chip) ±30μm CPK≥1.0(IC,stage vision) | |
Component range | 03015-12mm(H10mm) | 0402(01005)-16mm(H10mm) Max. 42mm( H15mm)(option) | 0402(01005)-21mm(H12mm) Max. 55mm( H25mm)(option) |
PCB size | 50*40-510*460mm(standard) -740*460mm(option) Max.-1200*460mm(option) | ||
Conveyor configurations | Standard: 1-2-1 Option: 1-2-2/2-2-2/2-2-1/1-1-1 Factory Option: single conveyor (Jadec Tray 2ea) | ||
Feeder capacity | 120ea(8mm) | ||
Power | Voltage: 3 phase AC200/208/220/240/380/415 V ±10% | ||
Air consumption | 50Nl/min | ||
Weight | About 1800kg | ||
External dimension | 1430*1740*1485mm(L*D*H) | ||
