SMT reflow oven Heller 1809 MKIII reflow oven

Reflow Oven
SMT Reflow Oven
Heller 1809 Mark 3 Reflow Oven
Heller 1809 Mark 3
Product description: Heller 1809 Mark 3 Reflow Oven

EMAIL

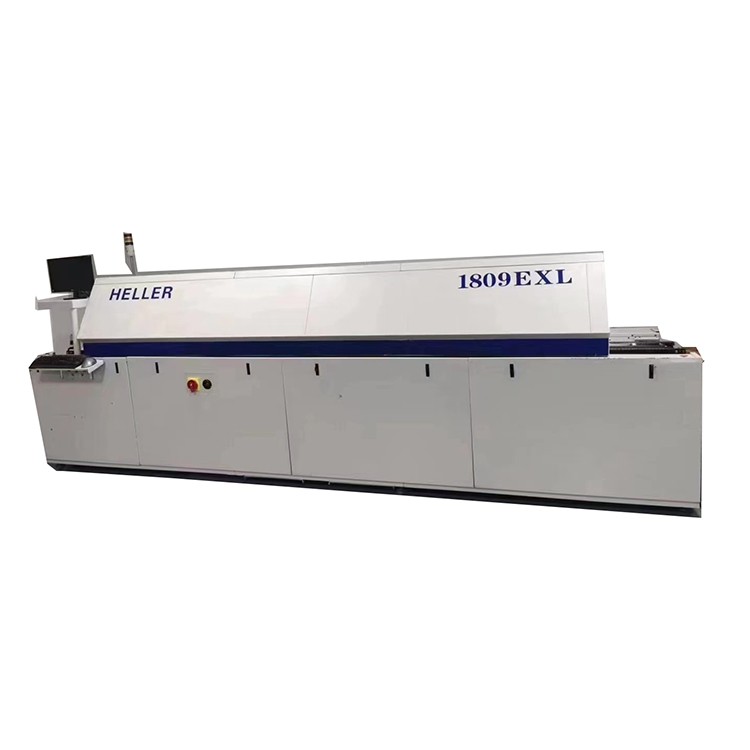

Heller 1809 Mark 3 Reflow Oven machine

1809 heller oven 1.jpg

Heller Reflow Oven SMT reflow oven Heller 1836 MKIII 1936 MK7 reflow soldering machine



The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.


main feature
A. Multi-temperature zone design, more temperature control points, to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be controlled below 1%
C. Efficient production capacity, the average production cycle is 30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest depressurization time
E. Efficient flux recovery system to prevent flux residues



Key Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!









Machine Model

Heller 1826MK7

Heller 1718 MK5

Heller 1936MK5

Heller 2043MK7

Heating Zones

Top 8 / Bottom 8

Top 6 / Bottom 6

Top 10 / Bottom 10

Top 13 / Bottom 13

Cooling Zones

Top 2

Top 1

Top 3

Top 4

PCB Width

50 - 560 mm

50 - 610 mm

50 - 610 mm

50 - 560 mm

Max Conveyor Speed

188 cm/min

188 cm/min

188 cm/min

188 cm/min

Cross-Belt Temperature Tolerance

± 2 ℃

± 2 ℃

± 2 ℃

± 2 ℃

Accuracy of Temperature Controller

± 0.1 ℃

± 0.1 ℃

± 0.1 ℃

± 0.1 ℃

Conveyor Width Adjustment

Manual Motor Control

Manual Motor Control

Manual Motor Control

Manual Motor Control

Operating System

Windows 10

Windows 7

Windows 7

Windows 10

Overall Dimensions

W4650 x D1520 x H1440 mm

W3300 x D1370 x H1600 mm

W5890 x D1370 x H1600 mm

W7224 x D1520 x H1440 mm

Typical Net Weight

Approx. 1970 kg

Approx. 1650 kg

Approx. 2900 kg

Approx. 3400 kg
