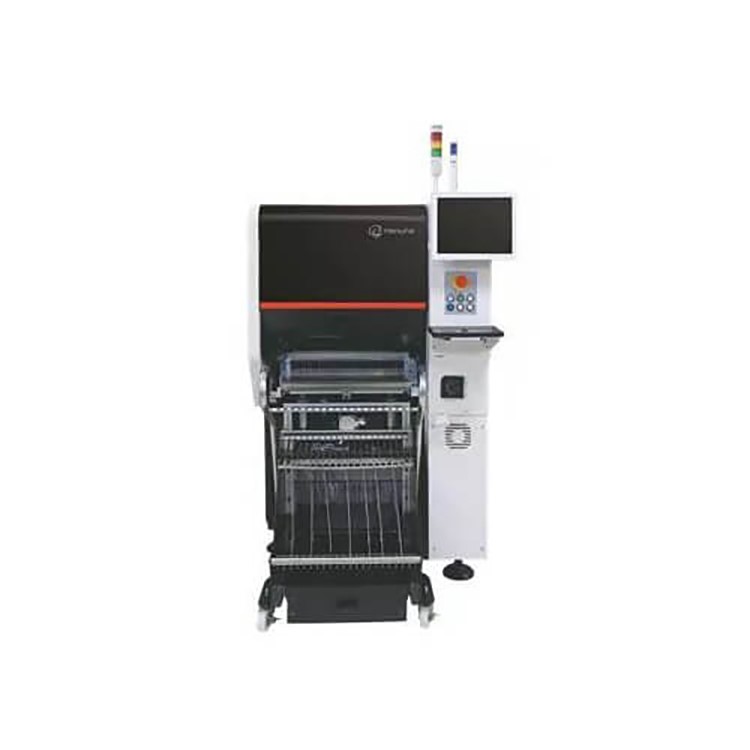

Hanwha HM520 Pick and Place Machine

Hanwha HM520 Chip Mounter
Patch speed: 80,000 CPH
size:890x2370x1930mm​
weight:1605KG
Product description: Hanwha HM520 modular pick and place machine, it's Hanwha's first modular chip mounter, 890MM length.Patch speed: 80,000 CPH,Spindle head, size:890x2370x1930mm​,weight:1605KG

EMAIL

Hanwha HM520 Pick and Place Machine


Hanwha HM520 modular Pick and Place Machine, it's Hanwha's first modular chip mounter, 890MM length.890MM length ultra-small Chip mounter
80,000CPH(Rotary Head)
60,000 CPH (Piano Head)
LED products: 72,000 CPH (Rotary)
Automatic detection of pick and placing problem.
Automatically replenishing suction/mounting position and height deviation
Preventing LED defects caused by turning
PCB: Max (L) 750x (W) 580mm (optional)
Equipment size:2370x1440x890mm
Power AC200 / 208/220/240/380
Equipment weight:1605KG

The Hanwha HM520 modular Pick and Place Machine is a high-speed Modular Chip Mounter equipped with Rotary Head.

high-performance newer flying camera placement machine that delivers world-class top speeds of 80,000 CPH .

03015Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.


Hanwha HM520 Chip Mounter parameters
Number of shafts: 10 shafts * 2 cantilever
Mounting Speed: 80000CPH (Rotary Head Conditions)
Mounting accuracy: 1μm
Component Size: 03015, BGA, CSP (Ball Pitch 0.03mm)

Electrically Driven High Speed and High Accuracy.
