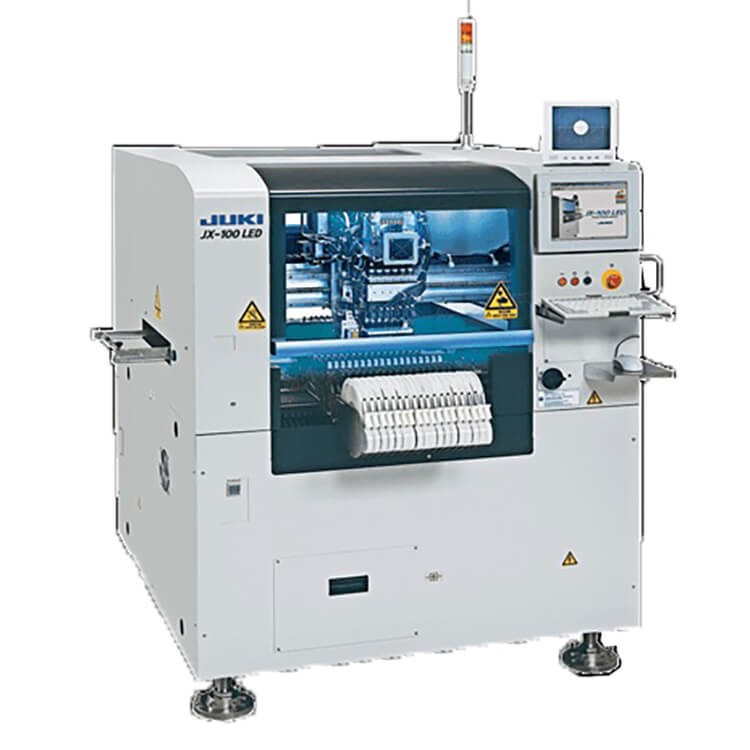

JUKI JX-100 LED Pick and Place Machine

JUKI JX-100 LED Pick and Place Machine

Compact High Speed Mounter for LED placement at low cost.

Compact but with 800×360 mm long board size capacity, the JX-100 LED is a low cost placement solution for notebook PCs, LCD monitors, and a wide variety of lighting equipment.
Superior Flexibility
High Speed Installation Functionality
Compact and Less Weight
Superior Versatility
User Friendly

Compact High Speed Mounter for LED placement at low cost.
Compact but with 800×360 mm long board size capacity, the JX-100 LED is a low cost placement solution for notebook PCs, LCD monitors, and a wide variety of lighting equipment.

Superior Flexibility| High Speed Installation Functionality|Compact and Less Weight
Superior Versatility
User Friendly

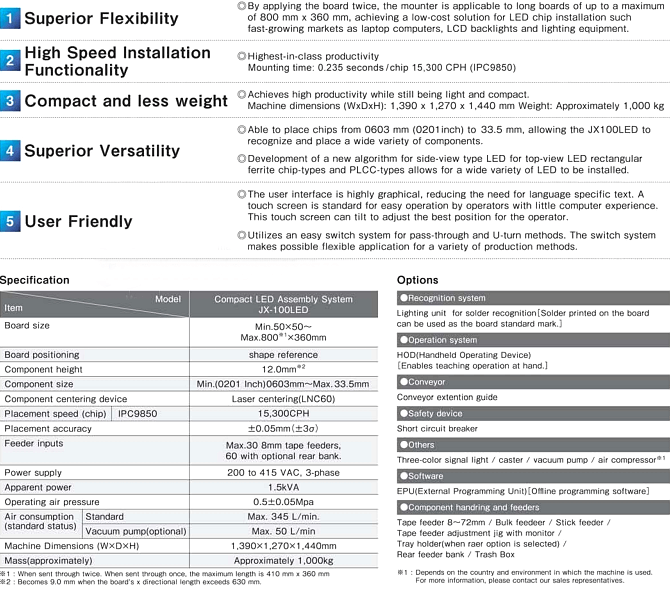

Placement Accuracy: Laser Alignment (chip placements) (±50μm) at +/- 3 Sigm
BOARD SIZE:  Min.50x50～Max.800x360mm
Component Height: 12.0mm
Component Size: Min.(0201 inch)0603mm～ Max.33.5mm
PLACEMENT SPECS| Placement Speed (chip): | IPC9850: 15,300CPH
FEEDER INPUTS: 60 single 8mm Tape Feeder
