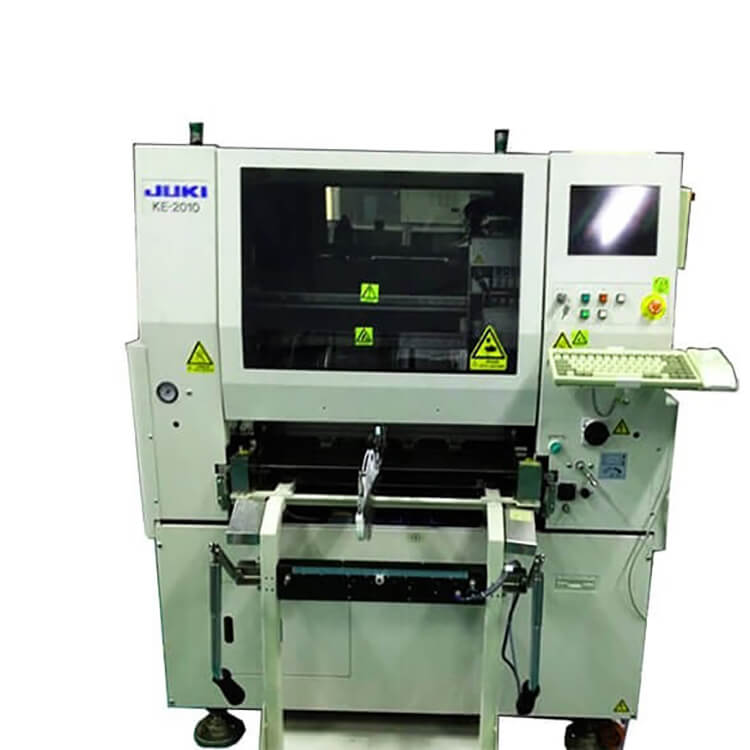

JUKI KE-2010 Pick and Place Machine

JUKI KE-2010 Pick and Place Machine

Chip theoretical speed of 11000CPH
Mounting range 0402 ~ 20mmJUKI KE-2010 Placement Machine parameters
Chip theoretical speed of 11000CPH
Mounting range 0402 ~ 20mm square components
Placement accuracy plus or minus 0.03mm
PCB size 50 × 30 ~ 330 × 250mm
Equipment size 1300 × 1471 × 1550MM
Rated power 3KVA
Equipment weight 1400kg

Used JUKI2010 placement machine is a mid-speed placement machine, generally 2000-2008 equipment,

laser patch head × 1 (4 nozzle) & high-resolution visual placement

head × 1 (1 nozzle) .JUKI2010 modified can be mounted 1.2 m LED light board.

Substrate size: 50 × 30 ~ 330 × 250mm
Substrate thickness: 0.4 ~ 4mm
Component Size: 0402 ~ 20mm square components or 26.5 × 11mm IC / BGA / CSP
Mounting speed: 11000CPH
Mounting accuracy: 0.05MM / 0.03MM (image recognition)
Component types: 80 types (up to 100 types using MTC)

Component Packaging: Tape (8mm, 12mm, 16mm, 24mm,

32mm, 44mm, 56mm, 72mm) Rod / Bulk / Tray

Machine size: 1300 × 1471 × 1550MM
Weight: 1400KG
Power: Three-phase 220V ~ 380V Three-phase 220V ~ 380V Frequency 50 / 60Hz 50 / 60Hz
Power: 3KVA 3KVA
Air pressure: 0.5 ± 0.05 MPa 0.5 ± 0.05 MPa
Air consumption: 230L / min square components
Placement accuracy plus or minus 0.03mm
PCB size 50 × 30 ~ 330 × 250mm
Equipment size 1300 × 1471 × 1550MM
Rated power 3KVA
Equipment weight 1400kg

Used JUKI2010 placement machine is a mid-speed placement machine,

generally 2000-2008 equipment, laser patch head × 1 (4 nozzle) & high-resolution visual

placement head × 1 (1 nozzle) .JUKI2010 modified can be mounted 1.2 m LED light board.

Substrate size: 50 × 30 ~ 330 × 250mm
Substrate thickness: 0.4 ~ 4mm
Component Size: 0402 ~ 20mm square components or 26.5 × 11mm IC / BGA / CSP
Mounting speed: 11000CPH
Mounting accuracy: 0.05MM / 0.03MM (image recognition)

Component types: 80 types (up to 100 types using MTC)

Component Packaging:

Tape (8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm) Rod / Bulk / Tray

Machine size: 1300 × 1471 × 1550MM
Weight: 1400KG
Power: Three-phase 220V ~ 380V Three-phase 220V ~ 380V Frequency 50 / 60Hz 50 / 60Hz
Power: 3KVA 3KVA
Air pressure: 0.5 ± 0.05 MPa 0.5 ± 0.05 MPa

Air consumption: 230L / min
