FEEDER INPUTS: Max.40
Max PCB:1,200 X 360mm
components ranging: 0603(0201)
Placement Speed:23,300CPH
Product description: JUKI JX-350 LED Pick and Place Machine,FEEDER INPUTS: Max.40, Max PCB:1,200 X 360mm,components ranging: 0603(0201),Placement Speed:23,300CPH

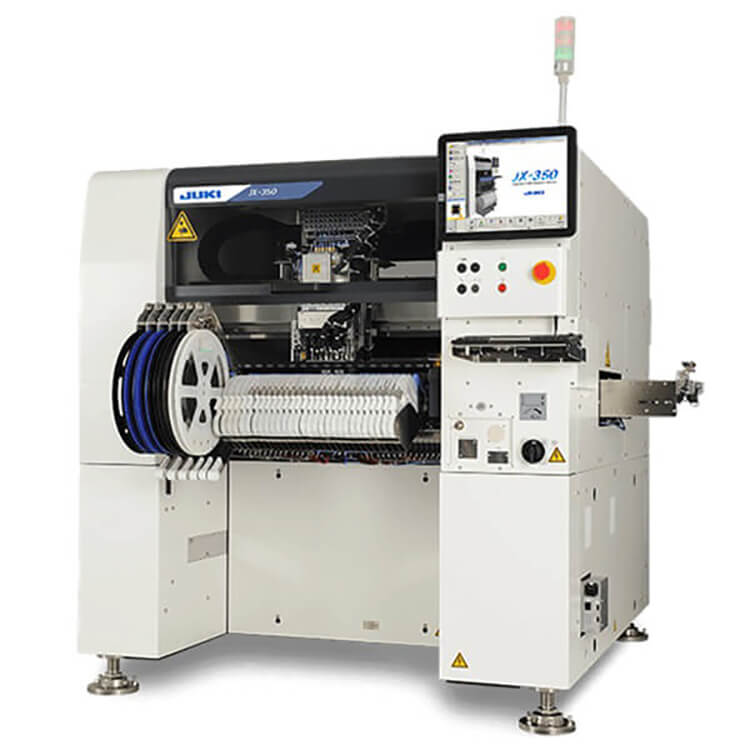

JUKI JX-350 LED Pick and Place Machine
The new JX-350 LED Mounter offers a flexible placement system specially designed forLED lighting products
and mid- to large LCD display backlights.
It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed,
high accuracy placement offers the best in the industry.

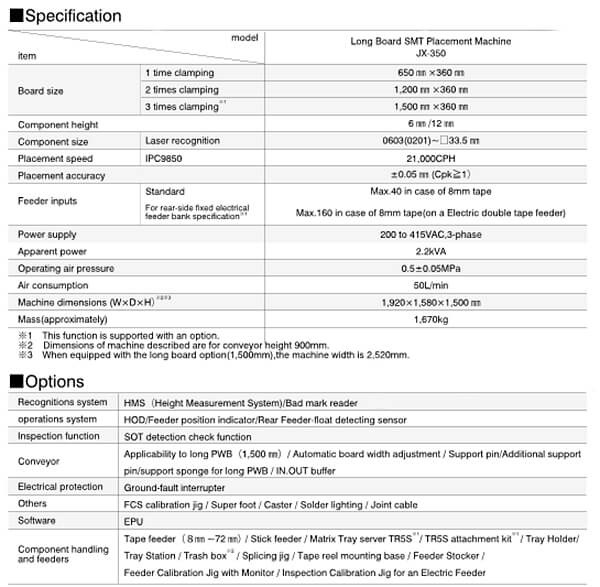

BOARD SIZE
Standard Specification: 50 X 50 ~ 1,200 X 360mm
Longer Sized PWB: 50 X 50 ~ 1,500 X 360mm
COMPONENT SPECS | Component Height: 6mm/12mm
Component Size:0603(0201) ～ 33.5mm
PLACEMENT SPECS
