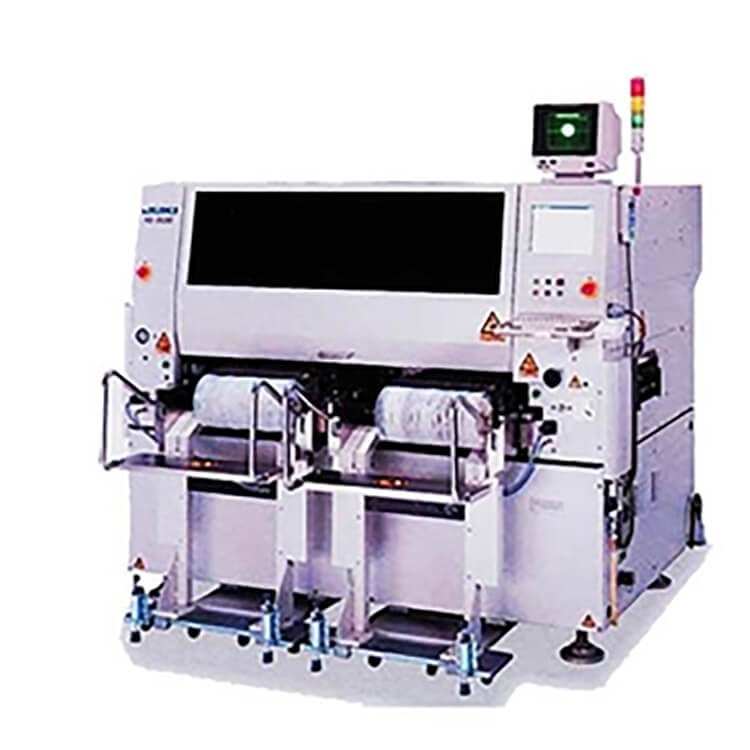

JUKI KE-2030 chip mounter

JUKI KE-2030 chip mounter

JUKI 2030 is 20000CPH can achieve high-speed performance "double-chip high-speed placement machine."
Not only can be used around 2 patch head to mount two substrates at the same time,

but also to achieve the same type of mounting the highest efficiency,

The equivalent of two JUKI 2010.
1) PCB size: 330mmX250mm
2) Can be attached to the component range: 0402,0603 chip -26.5X11mm or 20mm square components
3) The number of stations: 60 x 2
4) theoretical chip speed: 20000 (grain / hour)
5) Mounting accuracy: Laser identification ± 0.08mm
6) Size and weight: L1900 / W1476 / H2000 & 6000KG
7) Weight 1400 (kg)
Power three-phase AC200-415 (V)
8) Patch speed 19000CPH (grain / hour)
9) Resolution ± 0.05mm (mm)
Manufactured in 2000,
PCB size: 330mmX250mm
Components can be affixed to range: 0402,0603 chip-26.5X11mm or 20mm square components
Feed station number: 60 x 2
Theory Chip Speed: 20000 (tablets / hour)
Placement accuracy: ± 0.08mm laser identification
Size and weight: L1900/W1476/H2000 & 6000KG
Power and gas supply: 3PH, 200V, 5KVA
Configuration: 0603 2 sets of each nozzle; Manual CD-ROM 1
