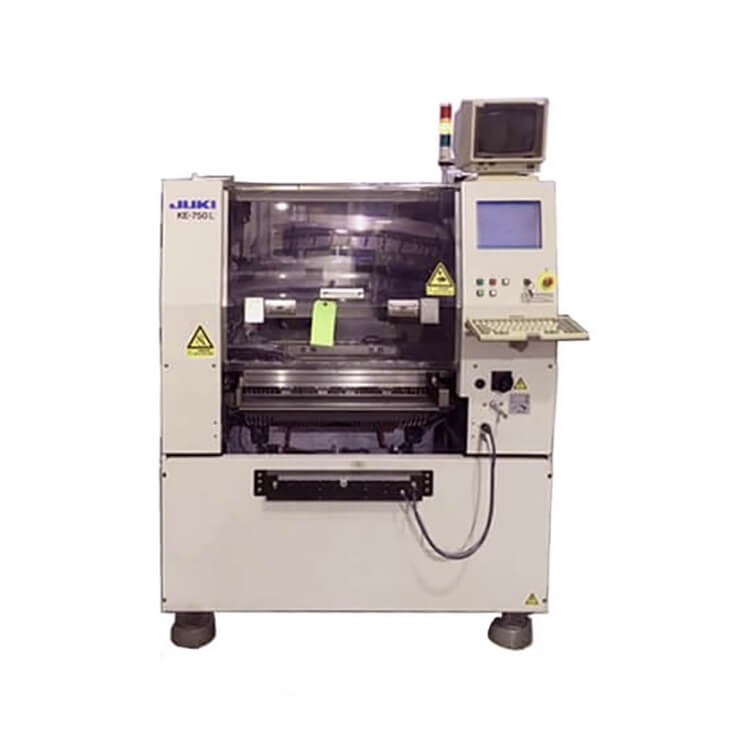

JUKI KE750 Pick and Place Machine

JUKI KE750 Pick and Place Machine

JUKI750 Placement machine is a medium-sized multi-function placement machine,
generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.

As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.

JUKI 750 placement head: 3
JUKI750 expected station: 80
Placement speed: 0.25sec / chip (3 at the same time attached to the attached)
JUKI750 placement accuracy: ± 0.1mm chip ± 0.09mm QFP (Laser)
Placement range: 1005 ~ 23.5mm (By Laser)
JUKI750 PCB size:
Maximum: 330 * 250mm
Min: 50 * 30mm
PCB thickness: 0.4 ~ 4mm
JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)
Weight: 1100KG
