Latest SMT line production PCB destacker bare board loader

power supply 220-230V communication (user specified), single phase
Electrical load 180 volts maximum
Gas pressure 4-6 bar
air flow volume Up to 30 liters / minute

EMAIL

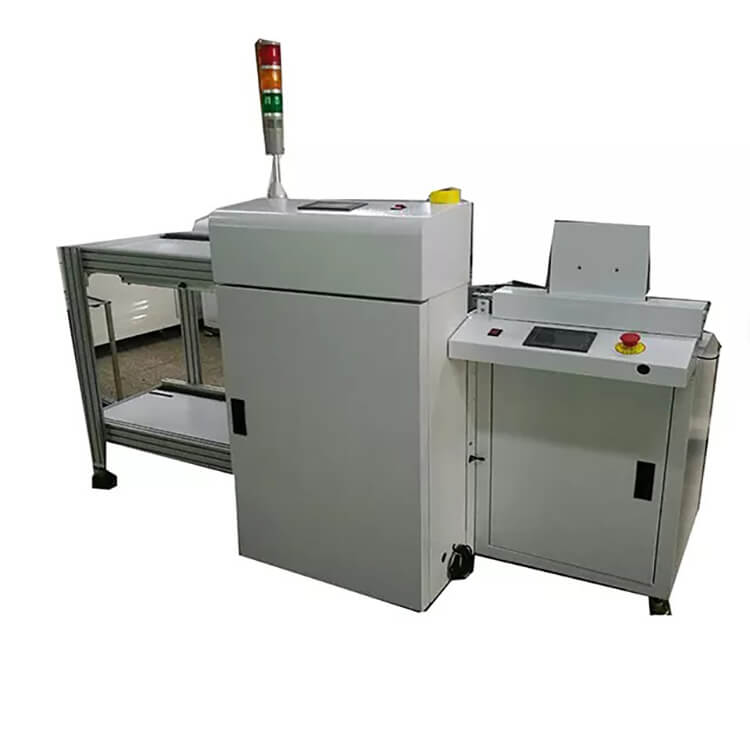

Latest SMT line production PCB destacker bare board loader

destacker loader 01.jpg


1. Closed sheet metal and aluminum alloy design structure to ensure the highest level of safety protection

2, standard anti-static material frame upper plate and vacuum suction plate to send plate two functional modes to choose, while meeting the double-panel and light plate feeding operation

3,The nozzle is positioned by a universal moving device, and the suction seat can be adjusted according to the characteristics of the PCB board and the hole position.

4,The top safety cover can be opened for easy handling of the machine hardware during maintenance

5,Easy to use touch screen function control interface

6, Adjustable nozzle position ensures clamping of the board

7,Robust balanced width adjustment (hand crank control screw adjustment)

8,Microcomputer Panasonic PLC control system, stable and reliable.

9,The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.

10,Multiple sound and light and touch screen alarm function

11,The rack lifting step can be set according to the thickness of the PCB.

12,Three-point positioning up and down pneumatic clamping ensures accurate bin position.

13,Push plate protection system ensures that PCB board will not be pushed and damaged, reducing process loss

14,User-friendly design ensures that PCB boards are not broken and improve output capacity

15,Smaller machine footprint

16,Compatible SMEMA interface




Technical Parameters:

description

This device is used for the upper plate operation of the production line light board and double-sided circuit board.

 Maximum board capacity

 300 pieces (0.6 mm thick circuit board)

 Cycle Time

About 8 seconds

 power supply

 220-230V communication (user specified), single phase

Electrical load

180 volts maximum

Gas pressure

 4-6 bar

air flow volume

Up to 30 liters / minute

 Transfer height

 900±20mm (or user specified)

 Transfer direction

 Left → right or right → left (optional)

Specifications:

 Model

SD-8350


(L×W)~(L×W)



(50x50)~(350x250)

Dimension
(L×W×H)



1550x1050x1250



 Weight

Approx.260kg
