Demensions(L×W×H);1200*490*1200(mm)
PCB width; 0-400(mm)
PCB direction; L-R
Conveyor speed;0-4000(mm)/Min

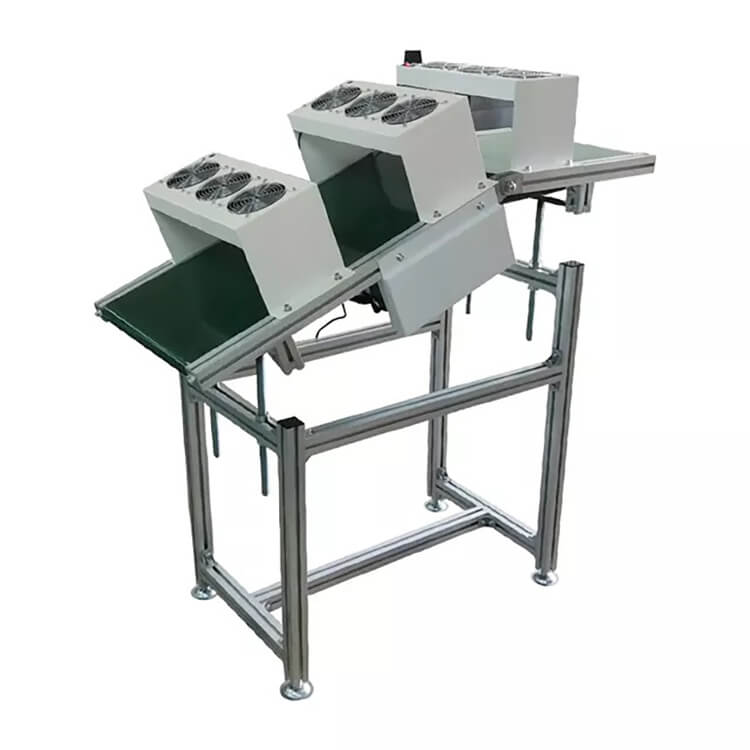

SMT PCB Wave Soldering Out feed Conveyor behind Soldering Machine Unloader
Product features:
1.It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.
2.Transmission speed, transfer height and track angle can be adjusted.
3.Cooling fan can be installed so that it can protect the PCBs or the component.
4.Special belt and track, transmission smooth, and work stable and reliable.
Specification:
Model | OUC-400 |
Demensions(L×W×H) | 1200*490*1200(mm) |
PCB width | 0-400(mm) |
PCB direction | L-R |
Conveyor speed | 0-4000(mm)/Min |
Motor | 1P AC220V 50/60HZ 15W |
Power supply | 1P AC220V 50/60HZ |
Conveyor Height | 750-1200mm(adjustable) |
Belt Material | ESD Belt |
Conveyor length | 400±800(mm) |
Weight | Approx.48Kg |
