New Product Set-up Time:
10 mins
Max. Size (L x W):
400 mm x 340 mm
Min. Size (L x W):
50 mm x 50 mm
Thickness:
0.4~6 mm
PCB Thickness Adjustment:
width reduced to 310 mm

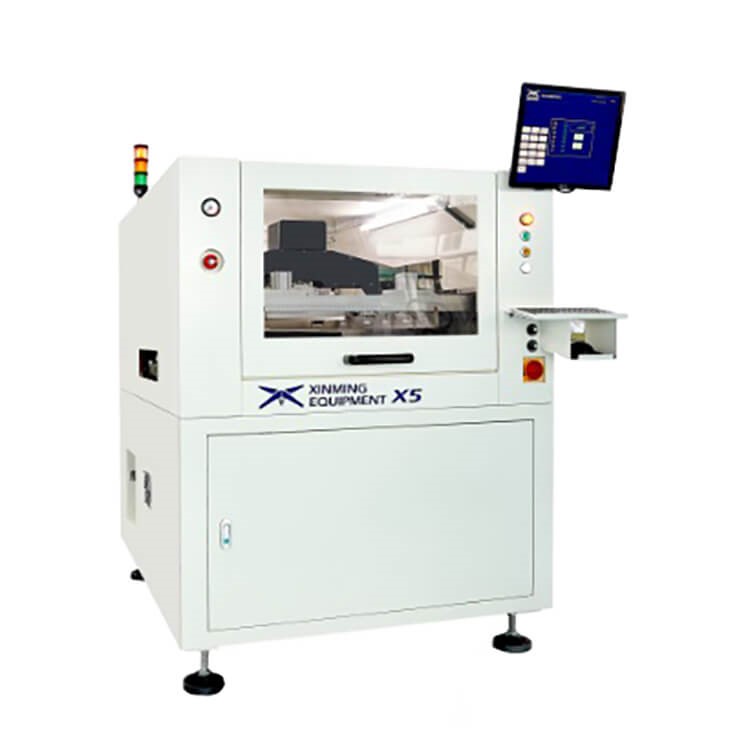

Smt Pcb Solder Screen Printers Full Auto Paste Printer X5
It adopts windows xp operation interface and has good man machine dialogue function. The program file has teaching and navigation functions, and the operation interface has: operation log/fault record/fault self-diagnosis/light alarm function, simple operation.
Type | Item | Parameter |
Operation interface | operating system | Windows XP Operation interface |
Signal link | SMEMA signal connection | |
visual system | visual parameters | Upper and lower dual-view high-performance CCD and image processing system. |
Printing accuracy | Repeat printing accuracy | ±0.01 |
Printing accuracy | ±0.025 | |
Cycle time | printing cycle | <8sOne piece does not include print cleaning time |
PCB parameter | Steel mesh size | 370*370-737*737mm |
Screen frame fixed | Cylinder | |
PCB size | Minimum 50*50, Maximum 400*340mm | |
PCB thickness | 0.4-6mm | |
PCB weight | ≤3kg | |
Support method | Magnetic ejector pin, magnetic ejector pin, manual crimping | |
delivery system | One-stage conveyor system. | |
Transmission direction | Left-right, right-left, left-left, right-right, (software control) | |
UVW platform adjustment range | Not lower than X: ±3mm, Y±7mm.e; ±2 degrees |
