YAMAHA YS24 LED Strip pick and place machine

Mounting Capability: 72,000 CPH
Board size: L50xW50mm to L700xW460mm
Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
Weight: Approx. 1,700KG
Product description: YAMAHA YS24 LED Strip Chip Mounter, Mounting Capability: 72,000 CPH, Board size: L50xW50mm to L700xW460mm, Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less), Weight: Approx. 1,700KG

EMAIL

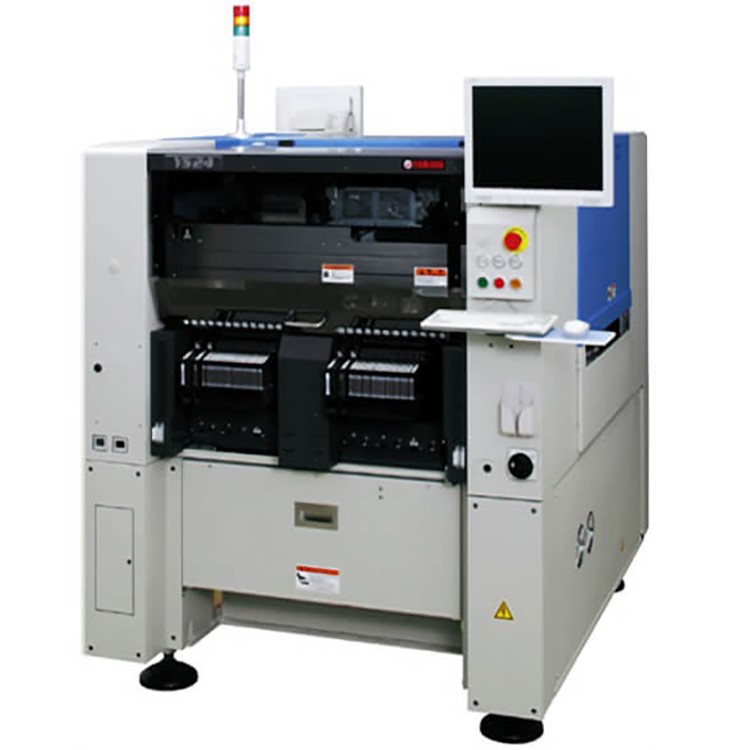

YAMAHA YS24 LED Strip pick and place machine

YAMAHA YS24 LED.jpg

Compact -Super-High -Speed Modular

Features:

72,000CPH (0.05sec/CHIP)
34kCPH/(Area-productivity, top class in the world)
L700 x W460mm (Super large PCB applicable)
YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm(Components applicable)

Specifications

Model

YAMAHA YS24

Applicable PCB

L50xW50mm –to L700xW460mm

Mounting accuracy

+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)

Speed

72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)

Weight

Approx. 1,700kg
