Yamaha YG200 Chip Mounter

Yamaha YG200 Chip Mounter
Patch speed 45,000CPH
L1,950×W1, 408 ×H1, 450mm
Weight approx. 2080kg
Product description: Yamaha YG200 Chip Mounter, Patch speed 45,000CPH, Dimension:L1,950×W1, 408 ×H1, 450mm, Weight approx. 2080kg

EMAIL

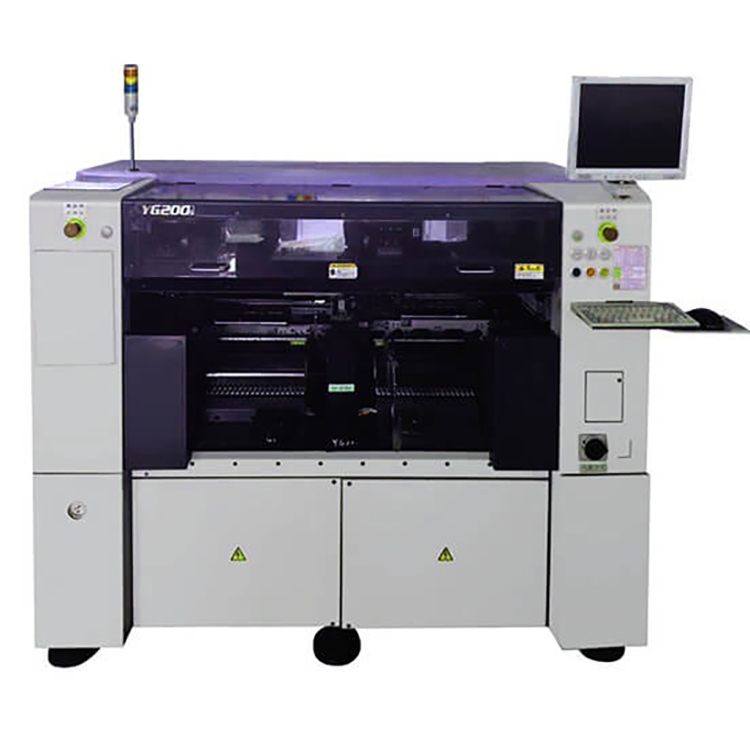

Yamaha YG200 Chip Mounter

Yamaha YG200 750.jpg


Key Specifications/Special Features:

High speed chip shooter Yamaha YG200 (Model : KGT-100)
Applicable PCB: L330×W250mm to L50×W50mm
Through-put (Optimum): 45,000CPH(0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability(3σ): +/-0.03mm/CHIP
Applicable components: 0402 (Metric base)to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 80 types(Max, 8mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states

External dimension, 950×W1, 408(End of cover)×H1, 450mm (cover top) L1, 950×W1, 608

(End of guide for feeder carriage)×H1, 450mm (cover top)

Weight approx. 2080kg
