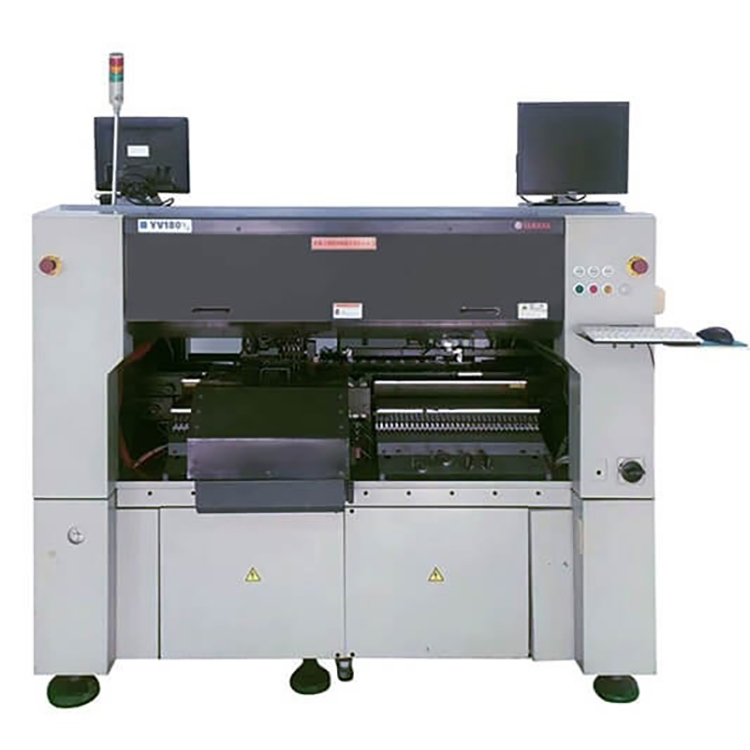

YAMAHA YV180 Chip Mounter

YAMAHA YV180 Chip Mounter

Brand: yamaha,
Model: Yamaha yv180x chip mounter
New and old: 8 into a new.
Machine age: yv180x, 20feeder, 2004
The main working parameters:
Power supply voltage: 380 (V)
Patch speed: 0.11 seconds / CHIP
0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:
SMD PCB size: L330XW330MM_L50XW50MM
Chip components: 0603 (MM) -31MMX31MM
SMD components can be put 96 kinds (8MM)
Mounter size: L1960XW1630X1450
Mounter weight: 2080KG
Mounter YAMAHA YV180xg chip mounter
Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)
L380 × W330mm (Max) / L50 × W50mm (Min)
Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】
1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]
Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)
※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.
