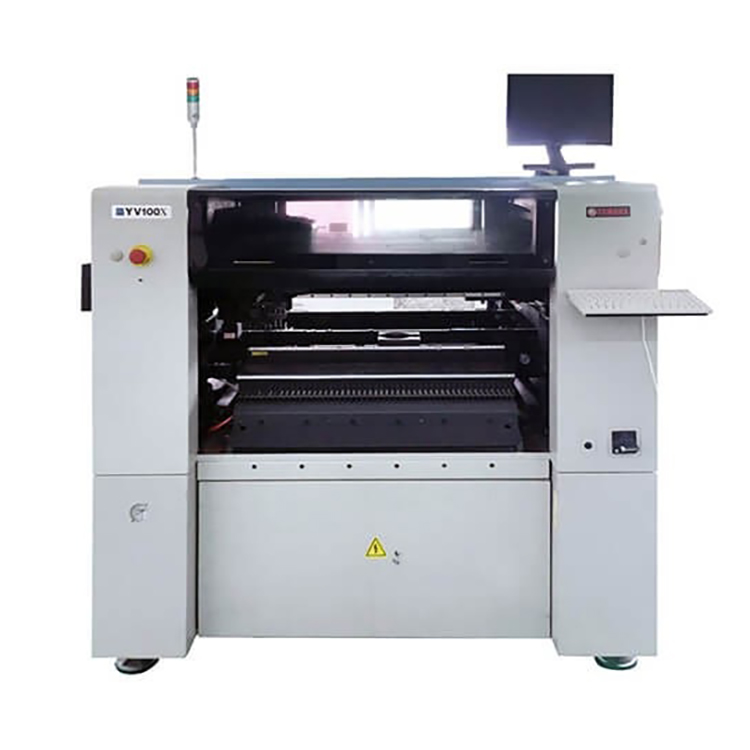

YAMAHA YV100X Chip Mounter

YAMAHA YV100X Chip Mounter

The price is USD19000-USD30000！
if you  are looking for yamaha used equipment,
pls contact us directly!

SMT (surface mount technology) component placement systems, commonly called pick-and-place

machines or P&P Machine, Yamaha YV100-x is robotic machines which are used to place

surface-mount devices (SMDs) onto a printed circuit board (PCB). They are used for high speed,

high precision placing of broad range of electronic components, like capacitors, resistors,

integrated circuits onto the PCBs which are in turn used in computers,

consumer electronics as well as industrial, medical, automotive,

military and telecommunications equipment.

Yamaha YV100X is a mid-speed multi-function placement machine to adapt to medium-speed small-sized components and high-precision mounting of shaped components, using the latest Yamaha latest closed-loop technology, dual drive technology. Used Yamaha YV100X placement machine factory period 1999-2004 years; YV100XE general year: 2004-2006, DOS operating system, a working head, 8 nozzles, 2 high-resolution multi-vision digital camera, Optional withYAMAHA patented flight for the first move, from 0201 (British) micro-components to 32mm chip SMD components, including IC.QFP.SOT.SOP.SOJ.PLCC.BGA. Heterosexual components such as connectors can be mounted . Mechanical structure is simple, a casting frame made to ensure durability and stability, the circuit control department is not complicated, easy maintenance.

Menu is relatively simple, easy to operate, can be easily modified stickers 1.2 m long LED light board.

Theory of 18000 points per hour. The actual production speed of about 9000 points per hour,suitable for small and medium batch production and with high-speed placement machine.

MC Type
Samsung YV100X Chip Mounter
PCB size
L460 x W445mm (Max.), L50 x W50mm (Min.)or L460 x W335mm
Accuracy  +-0.1mm(Chips)  +-0.08mm(QFP)
Mounting Speed
0.198sec/chips,18000CPH
1.7sec/QFP
Mounting angle
+-180°, per0.01°
Space for cassettes
100 of 8mmTape,
and 80 trays with YTF. (Option)
Available feeders
8-56mmTapes, Sticks, Bulks, Trays
Available Components
From 0.6mmX0.3mm to 32mmX100mm,
Maximum component height 6.5mm
Maximum mounting data
10000 mounting line/ 1 production data,
Maximum 500 production data in the hard disk.
Machine size： L1,655XW1,408XH1,850mm
Machine weight：1,450kg
